Home >> Buick >> 2018 >> Enclave Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Function System >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Passive and Keyless Start

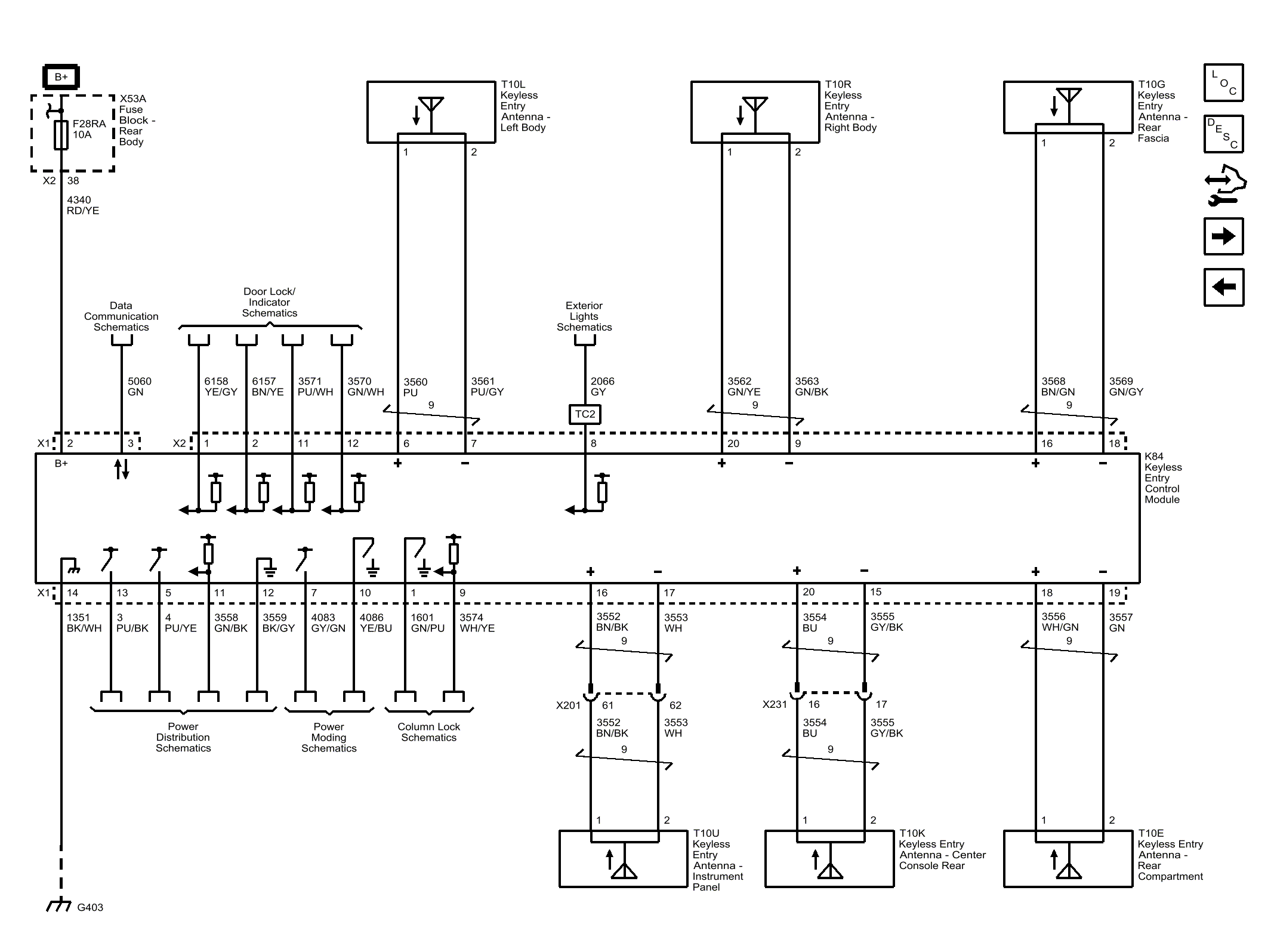

Keyless Entry - Passive and Keyless Start

GM4745297
