Home >> Buick >> 1984 >> Regal V6-252 4.1L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Electronic/Powertrain Control Module (ECM/PCM)

Electronic/Powertrain Control Module (ECM/PCM)

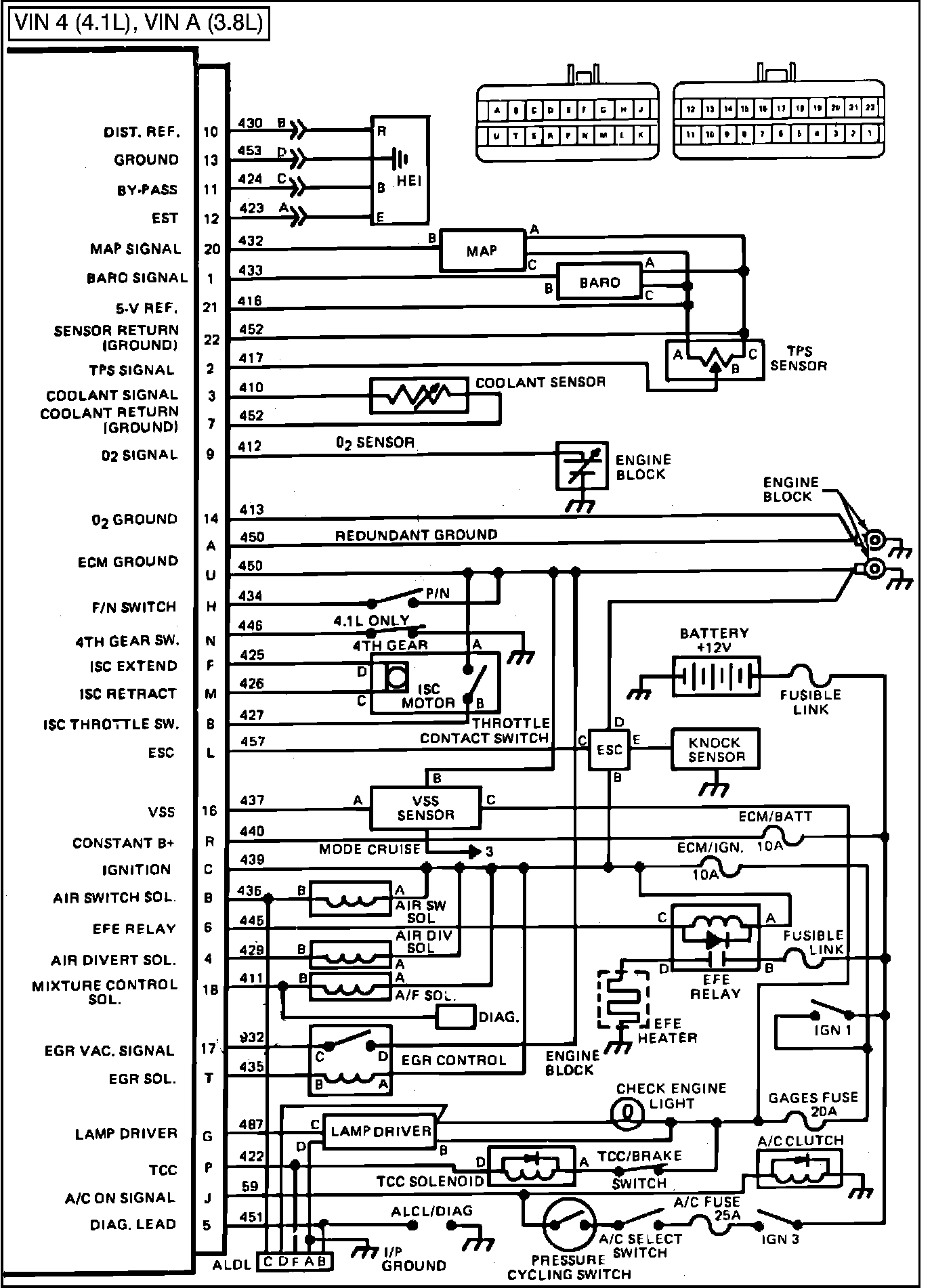

Fig. 002 - ECM Wiring Diagram.:
