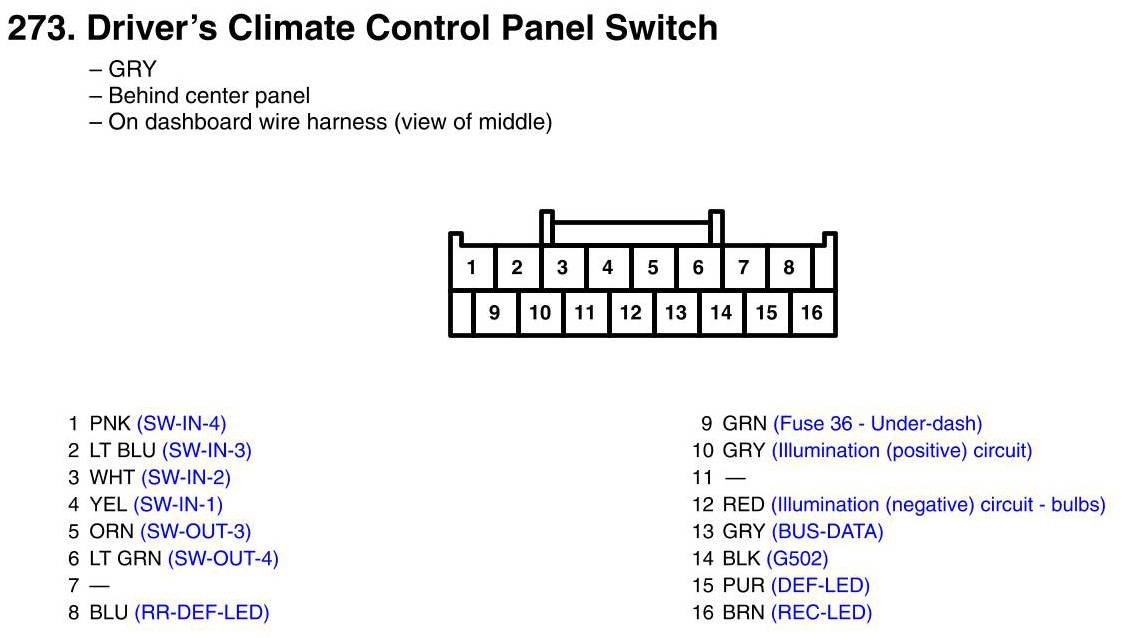

Driver's Climate Control Panel Switch Connector View
Driver's Climate Control Panel Switch Connector View
