Circuit Diagram

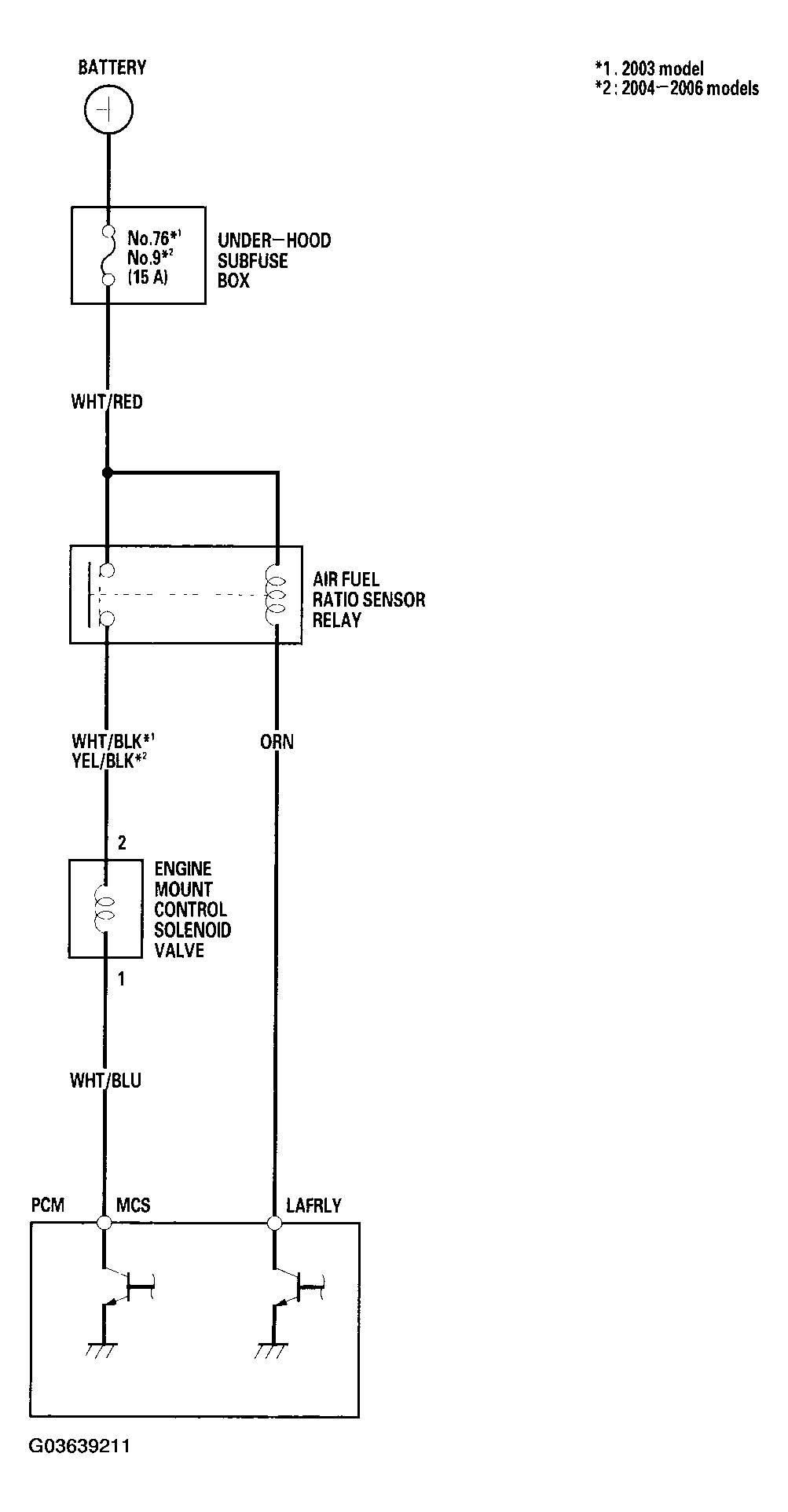

Fig 1: Engine Mount Control System Circuit Diagram

G03639211

Courtesy of AMERICAN HONDA MOTOR CO., INC.
